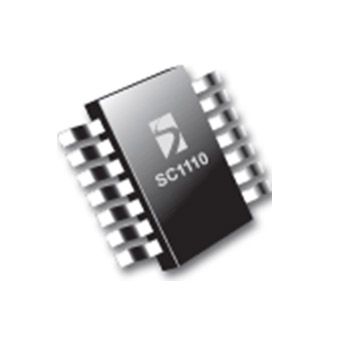

SC1110
Product is not recommended for new design.
The SC1110 is a low-cost, full featured, synchronous voltage-mode controller designed to generate termination voltage in double data rate (DDR) memory systems and other applications where wide data bus need to be actively terminated.
功能
- Generates termination voltages for active termination schemes
- 1% set point accuracy
- For ± 7 A output current, transient regulation is better than ± 80 mV
- VREFIN pin available for external 50% resistive divider to allow termination voltage track of the chipset voltage
- Buffered VREFOUT for system usage
- RDSON sensing for over-current protection in hiccup mode
- Soft start and logic input enabling
- 250 kHz switching for best transient and efficiency performance
- Gate drive capable for 0.5 A sourcing and sinking
- DDR memory systems
- Active termination schemes in high-speed logic systems
应用
封装
- SOIC-14
- TSSOP-14
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1110
产品描述
SINK AND SOURCE DC/DC CONTROLLER FOR TERMINATION POWER SUPPLY APPLICATIONS
引脚数
14
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
