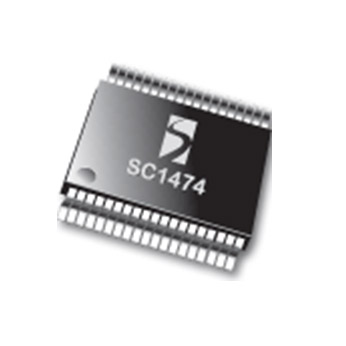

SC1474
Product is not recommended for new design.
功能
- IMVP3-compliant single-chip solution
- High-speed dual-phase hysteretic controller
- VID programmable output
- Dual integrated 2 A / 4 A drivers
- Integrated VID regulator controller
- Automatic performance/battery-mode detection
- Dynamic phase current matching
- Under-voltage lock out on all Vcc inputs
- Over-voltage protection on CORE
- Current limit protection on CORE
- Thermal protection
- Programmable soft start
- Power-good flag with blanking during VID changes
- Automatic power-save at light load
- Industrial temperature range
- TSSOP-38 package
- Advanced Intel microprocessors
应用
封装
- TSSOP-38
订购代码
- SC1474TSTR: Package Minimum Tape & Reel Only
- SC1474TSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1474
产品描述
SNGL CHIP IMVP-2 PWR SWTCH REG
引脚数
38
封装类型
TSSOP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
