概览
封装

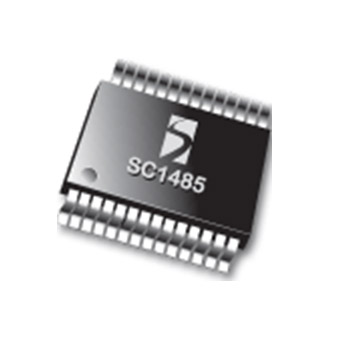

- TSSOP-28
订购代码
- SC1485ITSTR: Package Minimum Tape & Reel Only
- SC1485ITSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
PB Free/ROHS
Learn More →功能
- Constant on-time for fast dynamic response
- Programmable VOUT range = 0.5 – VCCA
- VIN range = 1.8 V – 25 V
- DC current sense using low-side RDS(ON) sensing or sense resistor
- Resistor programmable frequency
- Cycle-by-cycle current limit
- Digital soft-start
- Separate PSAVE option for each switcher
- Over-voltage/under-voltage fault protection
- 10 µA typical shutdown current
- Low quiescent power dissipation
- Two PGOOD indicators
- 1% reference (2% system DC accuracy)
- Efficiency >90%
- Integrated gate drivers with soft switching
- Separate enables
- Industrial temperature range
- 28-lead TSSOP package
应用
- Notebook computers
- CPU I/O supplies
- Handheld terminals and PDAs
- LCD monitors
- Network power supplies
