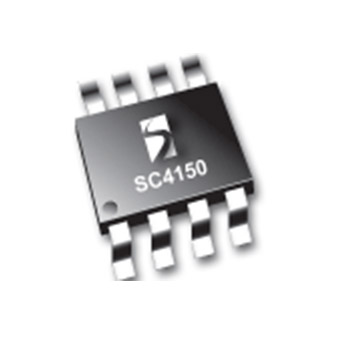

SC4150
Product inactive. Information on this page is for reference only.
The SC4150 is a negative voltage hotswap controller that allows the insertion of line cards into a live backplane.
功能
- Programmable slew of the inrush current when used for hot insertion in the negative 24 V and 48 V backplane
- Closed-loop operation limits the maximum current even in short-circuit condition
- Built-in timer prevents false shutdown, when the closed-loop operation limits the current
- Sensing the drain voltage allows for immediate shutdown in short-circuit condition, where current spikes and noise is ignored
- Power-good signal
- Input UVLO and OVLO sensing
- SO-8 package
- Central office switching
- Negative 48 V distributed power systems
- Power supply hotswap & inrush control
应用
封装
- SOIC-8
订购代码
- SC4150HIS-4TR: Package Minimum Tape & Reel Only
- SC4150HISTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC4150LIS-4TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC4150LISTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4150
产品描述
NEGATIVE VOLTAGE HOT SWAP CONTROLLER
引脚数
8
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
