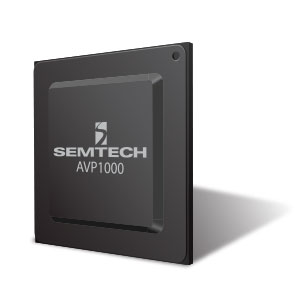

AVP1000

概览

Bringing the disruptive power of Ethernet to traditional AV signal distribution, the BlueRiver ASIC chipset delivers a single programmable system on chip (SoC), which can be used to replace traditional AV/KVM extenders, matrix switchers, video wall controllers, and windowing processors, with a simple network of transmitters, receivers and off the shelf Ethernet switches.

BlueRiver AVP1000 提供了成本效益较高的解决方案，以便在标准以太网上切换和扩展音频、视频和控制信号。

• 图像质量未压缩的 4K60 4:4:4
• 多声道音频、千兆位以太网、RS-232、USB 以及 IR
• 零延迟扩展和切换
• 所有信号类型均可独立切换
• 支持光纤和分类电缆
• 以太网供电 (PoE) 兼容

All BlueRiver series chipsets are not only interoperable with each other, but also interoperable with the installed base of SDVoE™ products. Sharing a common SDVoE API which intelligently enables features based on endpoint capability, the AVP2000 or AVP2000T can extend the capability of the AVP1000. For example, an AVP1000 transmitter, which does not support scaling, may send its signal to an AVP2000 receiver, which can display the AVP1000 video signal with scaling, seamless switching or as a video wall.

无论是设备发现，还是运行时间控制，SDVoE API 都可提供接口来便捷地设置、控制和监控设备功能（如路由、缩放、视频墙处理、图像合成、降混等），从而简洁快速地开发和部署复杂性各异的产品。 借助 API，各制造商的 SDVoE 产品之间可实现互操作性。

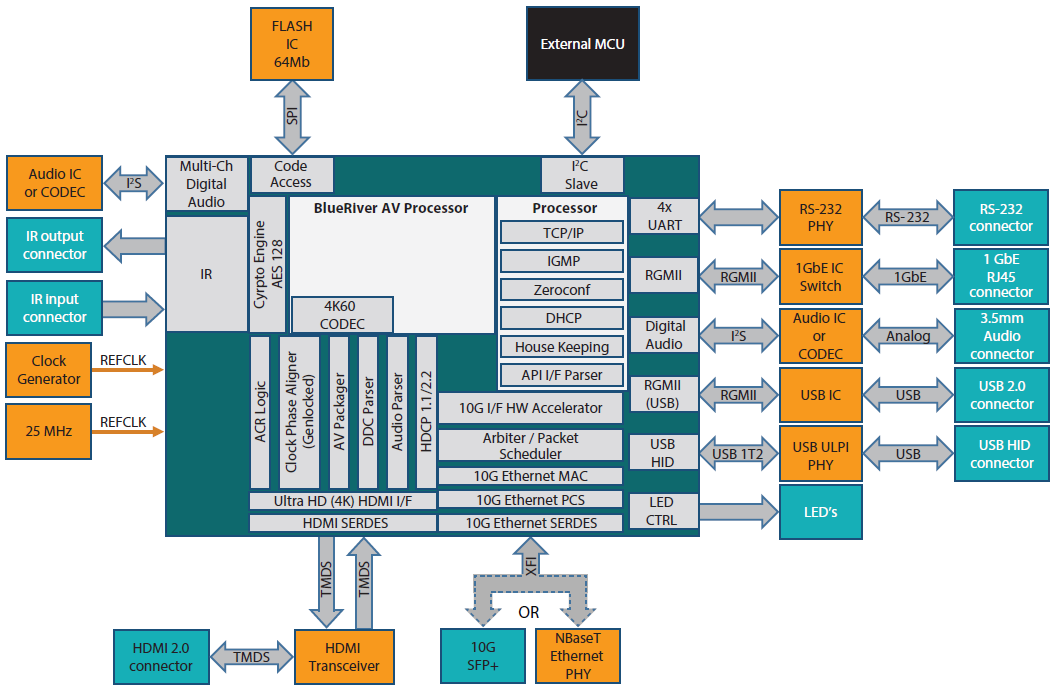

With a dedicated 1GbE interface combined with an integrated 10G to 1G switch, each BlueRiver enabled endpoint can provide a 1G data port, enabling true data networking within the AV network. This capability eliminates the need for redundant equipment and cabling for locations where the AV and data network overlap.
