概览
The XE1203F is a single chip transceiver operating in the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands. Its highly integrated architecture allows for minimum external components while maintaining design flexibility.
功能
- RF output power: up to +15 dBm
- High reception sensitivity: down to –114 dBm(typical)
- Low power consumption: RX = 14 mA; TX = 62 mA @15 dBm (typical)
- 电源电压低至 2.4 V
- Data rate from 1.2 to 152.3 kbit/s, NRZ coding
- Konnex-compatible operation mode
- 11-bit Barker encoder/decoder
- On-chip frequency synthesizer with minimum frequency resolution of 500 Hz, Continuous phase 2-level FSK modulation, Received data pattern recognition
- Bit-Synchronizer for incoming data/clock synchronization and recovery
- RSSI（接收信号强度指示）
- FEI (Frequency Error Indicator)
- RoHS green package
| 文档 | Release Date | Type |  |
|---|---|---|---|
| XE1203F Datasheet | 2018-12-21 | | |
| Calculating Radiated Power and Field Strength | 2019-04-18 | | |
| FCC 第 15.247 部分使用数字调制的规则系统 | 2019-04-18 | | |
| 提高晶体振荡器的准确度 | 2019-04-18 | | |
| XE8000 驱动 XE1200 收发器 — 标准 API 定义 | 2019-07-03 | ZIP | |
| XE1203FSK EVK User Guide | 2019-04-16 | | |

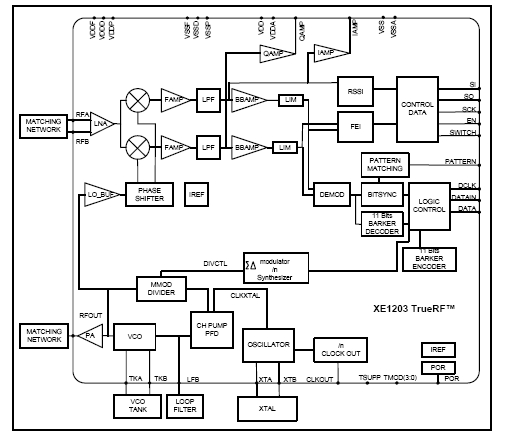

点击图表放大
