概览

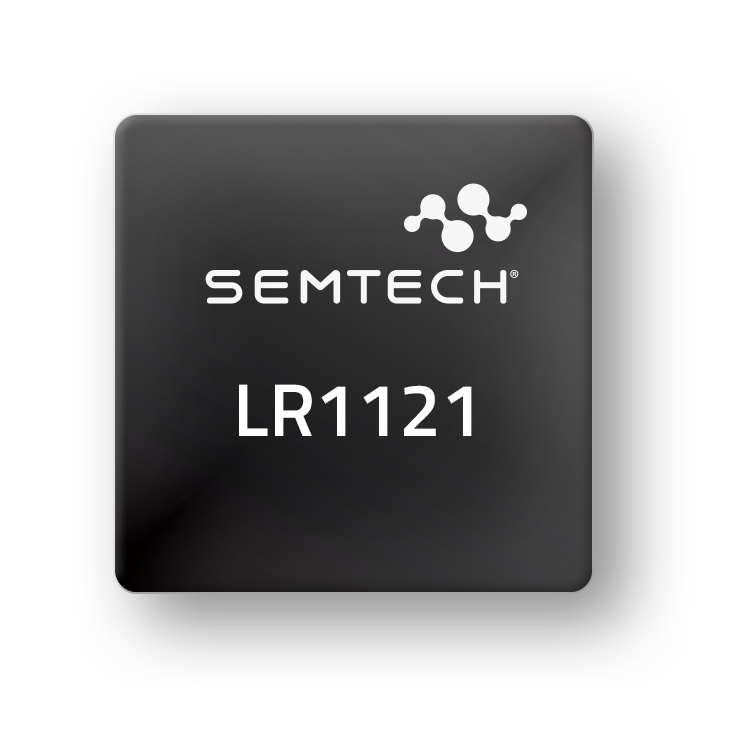

The LR1121 is Semtech’s third generation ultra-low power LoRa® transceiver. It provides multi-band LoRa and Long Range - Frequency Hopping Spread Spectrum (LR-FHSS) communication over sub-GHz and 2.4GHz ISM bands as well as satellite S-Band connectivity. The LR1121 is designed to comply with the physical layer requirements of the LoRaWAN® specification released by the LoRa Alliance®, while remaining configurable to meet different application requirements and proprietary protocols.
功能
- 低功耗高灵敏度 LoRa/(G)FSK 半双工射频收发器
- Worldwide ISM frequency bands support in the range 150 - 960MHz (sub-GHz) and 2.4GHz, as well as 2.1GHz S-Band
- Low noise figure RX front-end for enhanced LoRa/(G) FSK sensitivity
- High power PA path +22dBm in the sub-GHz band
- 2.4GHz 频段中高达 +11.5dBm 的 PA 路径
- LR-FHSS 调制器
- Integrated PA regulator supply selector to simplify dual power +15/+22dBm with one board implementation (sub-GHz)
- 能够支持世界范围内的多区域 BOM，电路可自适应匹配网络，以满足监管限制
- 与 SX1261/2/8 器件完全兼容，并符合 LoRa Alliance 定义的 LoRaWAN 标准
加密引擎
- 支持基于 AES-128 加密/解密的算法
- Handles device parameters such as DevEUI and JoinEUI, as defined by the LoRa Alliance
- Protects confidential information such as encryption keys against unauthorized access
- Stores of NwkKey, AppKey, as defined in the LoRaWAN standard
| 文档 | Release Date | Type |  |
|---|---|---|---|
| LR1121 Datasheet | 2023-12-13 | | |
| AN1200.57 LR11xx Program Memory Update | 2023-06-23 | | |
| AN1200.58: Application note for Long-Range FHSS Demo | 2023-03-27 | | |
| AN1200.59: Selecting the Optimal Reference Clock | 2023-08-24 | | |
| AN1200.62: Best Practices for FCC Pre-Compliance testing of LoRaWAN Modules | 2023-10-10 | | |
| AN1200.64: LR-FHSS System Performance | 2023-03-27 | | |
| AN1200.66: PCB Design Guidelines | 2023-10-10 | | |
| AN1200.73: SX126x/LR11xx SigFox Modulation | 2023-12-14 | | |
| AN1200.76 Application Note for LR11xx IPD Reference Design | 2024-02-16 | | |
| AN1200.80: LoRa® Modem Doppler Immunity | 2023-10-26 | | |
| AN1200.81: Doppler Immunity of the LR-FHSS Modem | 2023-12-04 | | |
| AN1200.92: LR1121 Modem-E Evaluation Guide | 2024-10-09 | | |
| Design Files for LR1121DVK1TGKS kit @490MHz | 2023-06-26 | ZIP | |
| Design Files for LR1121DVK1TxKS kit @868MHz and @915MHz | 2023-06-26 | ZIP | |
| LoRa Basics Modem-E V2.0 Reference Manual | 2024-09-25 | | |
| LR1121 User Manual | 2024-09-24 | | |
| 文档 | Release Date | Type | |
|---|---|---|---|
| Driver for LR11xx chips | 2023-12-14 | TXT | |
| LR1121 Transceiver Microcode | 2023-12-14 | TXT | |
| LR11xx firmware update procedure | 2023-12-14 | TXT | |
| SWDR007 - LR11xx Sidewalk Driver for EFR32MG24 | 2024-07-18 | TXT | |
| SWL2001 - LoRa Basics Modem Library | 2024-05-14 | TXT | |
| SWSD003 - Code examples for SX126x and LR11XX | 2024-10-11 | TXT | |
| SWSD006 - LR11xx Multi-Stack SDK for nRF52840 | 2024-08-14 | TXT | |
