LR1121DVK1TGKS

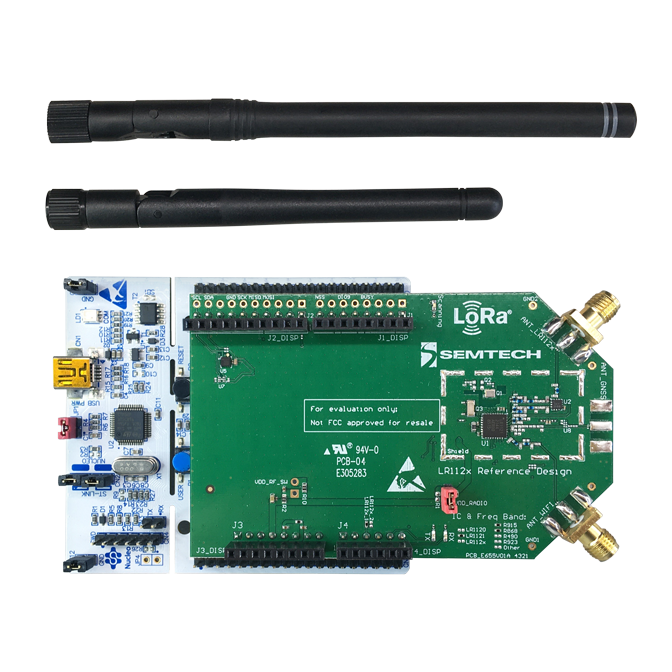

The LR1121DVK1TGKS development kit features Semtech's LoRa Connect LR1121. The LR1121DVK1TGKS's RF front-end and antennas are configured for the LoRa® 490MHz Industrial, Scientific and Medical (ISM) band for China, as well as for the global 2.4GHz ISM band.
功能
- Based on LR1121
- PCB 层：4
- 32MHz reference clock: XTAL
- Region: China
- 频段：490MHz 和 2.4GHz
- Tx out power: 20dBm (subGHz) and 11.5dBm (2.4GHz)
- RF matching: RF switch
- Each development kit contains RF modules:
- PCB 版本编号：E655V01A
- Single RF module part number: LR1121MB1DIS
- 智能电表
- 楼宇自动化
- 农业传感器
- 智慧城市
- 零售店传感器
- 资产跟踪
- 街道照明
- 倒车雷达
- 环境传感器
- 安全传感器
- 遥控应用
- Home automation and appliances
- Radio-controlled toys and drones
应用
封装
- Development kit
订购代码
- LR1121DVK1TGKS
Datasheets & Documentation
其他资源
探索该产品的软件下载、文档、推荐链接和更多资源。
LoRa 开发者门户
A place to learn, connect, collaborate, and find resources to help accelerate your Internet of Things development process.
Demonstration
LR-FHSS Demonstration & Drivers
This package contains drivers and demos for Long-Range Frequency Hopping Spread Spectrum (LR-FHSS) transmission.
L2 Protocol Library
LoRa Basics™ Modem LoRaWAN L2 Library
LoRa Basics Modem is an easy-to-use software library that simplifies the development of LoRaWAN® end nodes.
Silicon Driver
LR11xx Transceiver Driver
This package proposes an implementation in C of the driver for LR11XX radio component.
Silicon Microcode
LR1121 Transceiver Firmware
软件开发套件
LoRa Basics Modem SDK contains several simple examples highlighting LoRa Basic Modem features.
软件开发套件
LR11xx Transceiver SDK
The LR11xx SDK contains several simple examples for LR11xx transceivers.
Tool
LR11xx Firmware Updater Tool
Reference implementation of the mechanism to update a the LR11x0 firmware.
