概览

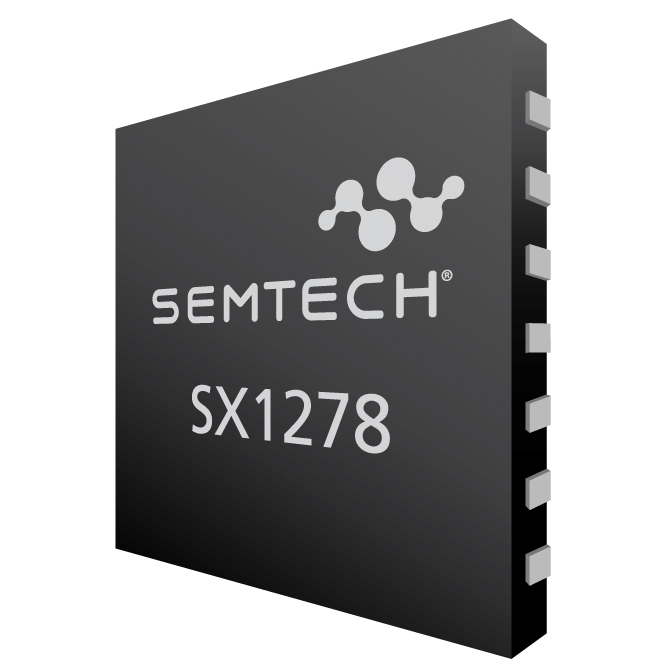

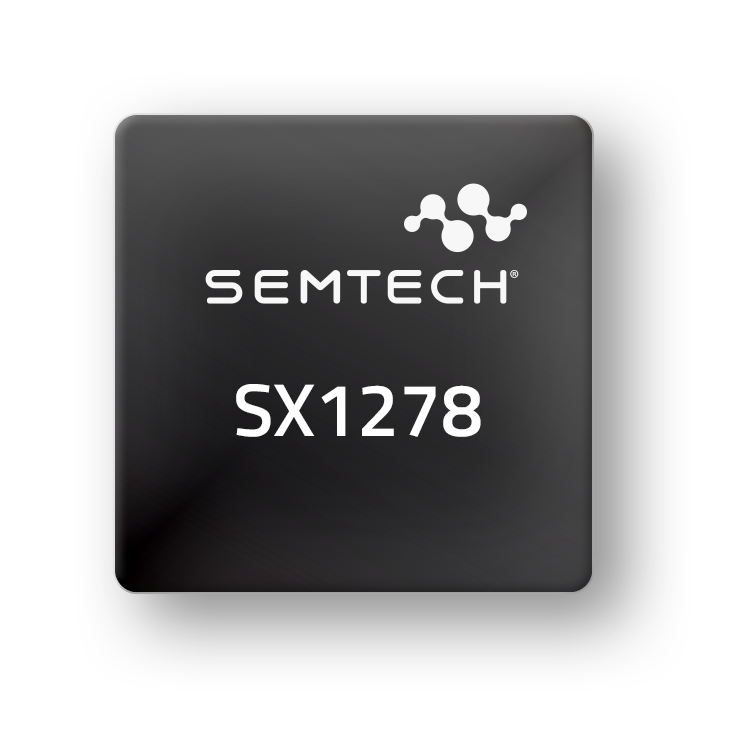

SX1276/77/78/79 收发器设有 LoRa® 长距离调制解调器，可提供超长距离扩频通信并具有较高抗干扰性，可将电流消耗降到最低。
使用 Semtech 获得专利的 LoRa 调制技术 SX1276/77/78/79，可使用低成本晶体和材料清单实现 -148dBm 以上的灵敏度。此类收发器具有超高灵敏度，并集成 +20 dBm 功率放大器，实现业界领先的链路预算，是要求大范围和高强度的应用的最佳选择。LoRa 还赋予了传统模块技术难以企及的模块化和灵敏度优势，结束了传统设计必须在范围、抗干扰性和能耗之间做出取舍的窘况。
功能
- LoRaTM 调制解调器，最大链路预算 168 dB
- +20 dBm — 当恒定射频输出为 100 mW 且电源电压 V
- +14 dBm 高效率 PA
- 可编程位，速率高达 300 kbps
- 灵敏度高：低至 -148 dBm
- 防弹前端：IIP3 = -11dBm
- 出色的阻断抗扰性
- 电流低：RX 为 9.9 mA，保持寄存器时为 200 nA
- 高度集成的合成器，分辨率 61 Hz
- FSK、GFSK、MSK、GMSK、LoRa 和 OOK 调制
- 内置位同步器，可用于时钟恢复
- 前导检测
- 127 dB 动态范围 RSSI
- 自动射频感应和带超快速 AFC 的 CAD
- 使用 CRC 的封包引擎，高达 256 字节
- 内置温度传感器和低电量指示灯
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SX1276-7-8-9 数据表 | 2020-05-26 | | |
| AN1200.18: Software Implementation of Data Whitening and CRC | 2019-07-12 | | |
| AN1200.19: SX127x Reference Design Overview | 2019-07-02 | | |
| AN1200.21: Reading Channel RSSI During a CAD | 2019-07-12 | | |
| AN1200.22: LoRa Modulation Basics | 2019-07-02 | | |
| AN1200.28: MCU Requirements for LoRaWAN | 2019-07-02 | | |
| AN1200.43: Testing for FCC Pre-Compliance with LoRaWAN Modules | 2019-07-03 | | |
| AN1200.80: LoRa® Modem Doppler Immunity | 2023-10-26 | | |
| SX1276-7-8 勘误表 | 2019-07-02 | | |
| 文档 | Release Date | Type | |
|---|---|---|---|
| 固件驱动程序 V2.1.0- 旧版，请勿用于新的实施 | 2019-07-29 | ZIP | |

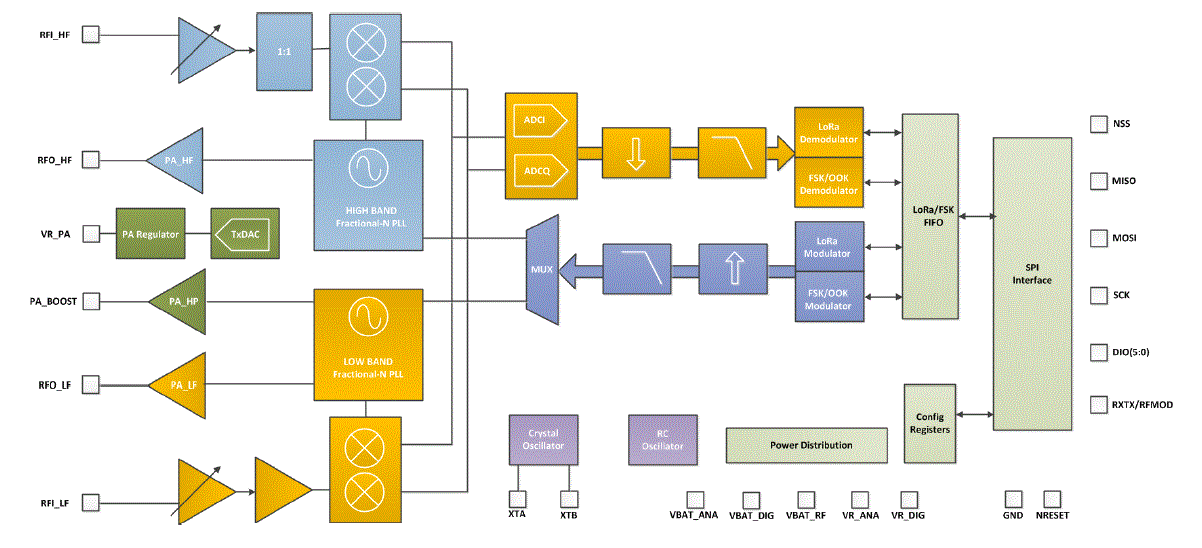

点击图表放大
