Reference Design
The One-Channel Hub reference design provides LoRaWAN network connectivity utilizing the lowest cost solution available by incorporating Semtech's LoRa sub-GHz transceiver with a low cost Espressif MCU, and adds an LCD display for simple user operation. Currently compatible with SX1261, SX1262, SX1268, LR1121(for dual SF-operation) and LLCC68.
With the LR1121, the One-Channel Hub supports two SFs in parallel. This enhances versatility of the network, with the possibility to connect very remote sensors, using SF10 for example, as well as nearby sensors, i.e. using SF7, providing lower power consumption or more data throughput.
Semtech One Channel Hub Order Codes

  • LRWHUB1EVK1A for SX1261, SX1262, SX1268, LR1121 & LLCC68 Gateway Development Kit
  • See table below for LoRa Shield ordering codes
Transceiver IC 地区 Ordering Code Order Now
SX1261 EU868 SX1261MB1LBAS 立即购买
SX1262 US915 SX1262MB1LCAS 立即购买
SX1268 CN490 SX1268MB1LGAS 立即购买
LLCC68 EU868 LLCC68MB2BAS 立即购买
LR1121 EU868 & US915 LR1121ED1THDAS 立即购买


功能

参考设计包括：

  • One channel
  • Class A/C LoRaWAN Compatible
  • Half duplex mode
  • Transmit power up to +22dBm
  • Receive sensitivity down to:
    • EU868/CN470
      • -137 dBm at SF12, 125kHz bandwidth (SX126x, LLCC6x)
      • -141 dBm at SF12, 125kHz bandwidth (LR1121)
      • -124 dBm at SF7, 125kHz bandwidth (SX126x, LLCC6x)
      • -127 dBm at SF7, 125kHz bandwidth (LR1121)
    • US915
      • -120 dBm at SF8, 500kHz bandwidth (SX126x, LLCC6x)
      • -124 dBm at SF8, 500kHz bandwidth (LR1121)

封装

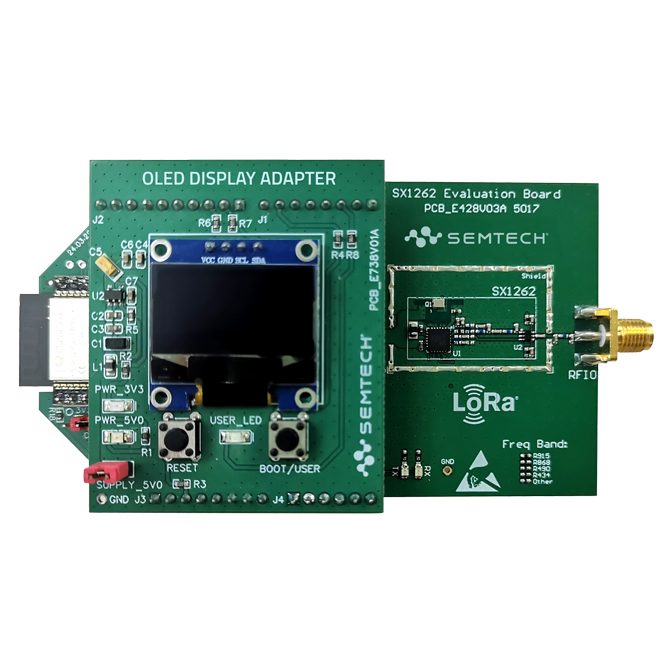

  • The LRWHUB1EVK1A contains an ESP32-S3 shield adapter board and an OLED display adapter board
  • LoRa Shields ordered separately
  • Some assembly required

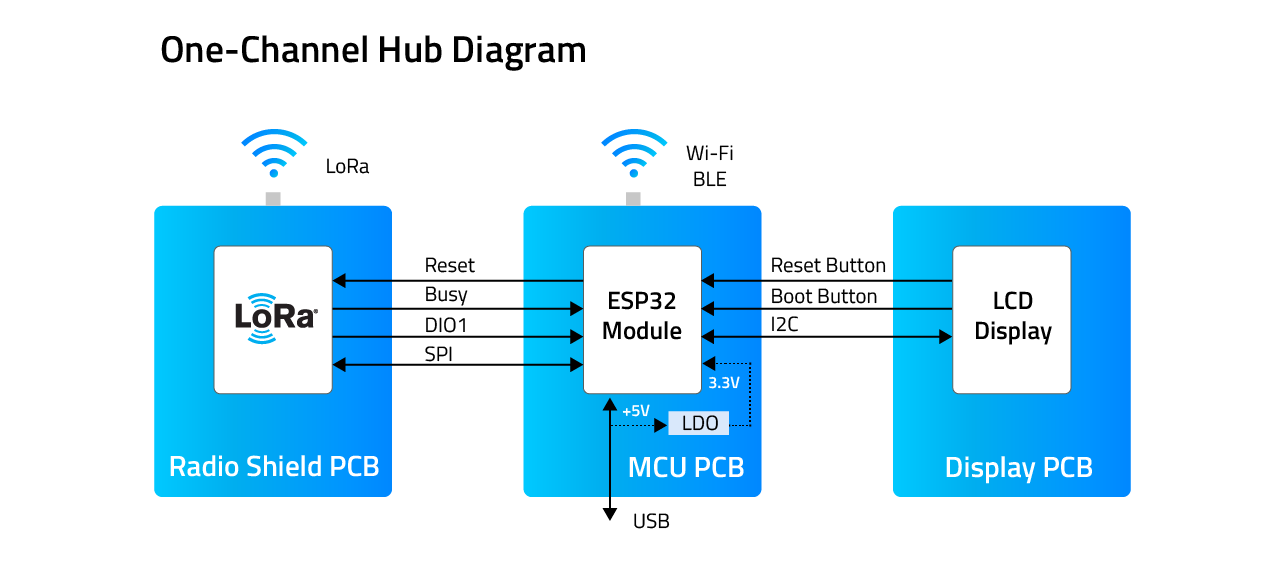

点击图表放大
