概览

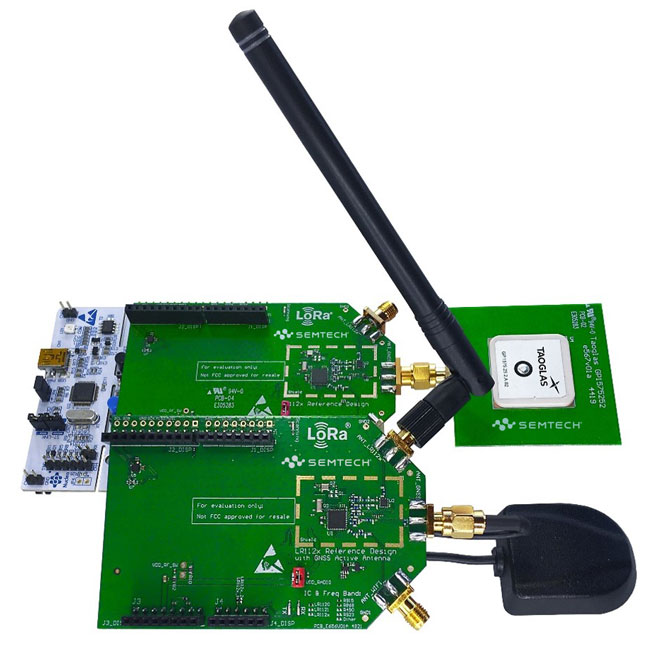

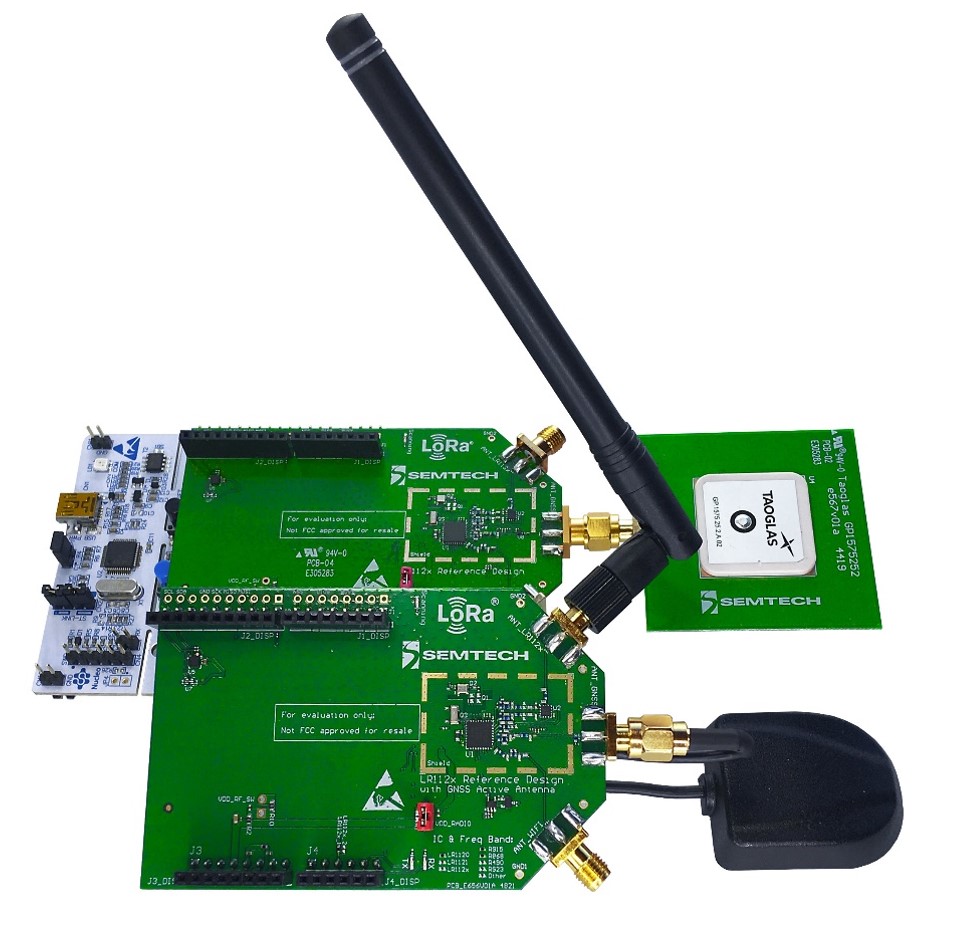

该开发套件配备有 Semtech 的 LoRa Edge™ LR1120，并针对北美的 LoRa 915MHz 工业、科学和医疗 (ISM) 频段以及全球 2.4GHz ISM 频段进行了配置。
功能
- 基于 LR1120
- PCB 层：4
- 32MHz 参考时钟：TCXO
- 地区：北美
- 频段：915MHz 和 2.4GHz
- 输出功率：22dBm (Sub-GHz) 和 11.5dBm (2.4GHz)
- 每个开发套件都包含两个不同的射频模块：
- PCB 版本编号：E655V01A
- 用于无源 GNSS 天线的单射频 (RF) 模块产品编号：LR1120MB1DIS
- PCB 版本编号：E656V01A
- 用于有源 GNSS 天线的单射频 (RF) 模块产品编号：LR1120MB1DJS
- PCB 版本编号：E655V01A
| 文档 | Release Date | Type |  |
|---|---|---|---|
| LR1120 参考设计介绍 | 2022-10-24 | | |
| LR1120DVK1TCKS 套件 @915MHz 的设计文件 | 2023-06-26 | ZIP | |
