LR1120MB1IPDT1DKS
The LR1120MB1IPDT1DKS development kit features Semtech's LoRa Edge™ LR1120 and is configured for the LoRa 868MHz and 915MHz Industrial, Scientific and Medical (ISM) band for Europe and North America, as well as for the global 2.4GHz ISM band. This LR1120 reference design includes Integrated Passive Devices (IPD), developed in partnership with Johanson Technology.
No evaluation kit available for purchase.
Available reference design file package.
功能
- PCB 层：4
- 32MHz ref clock: TCXO
- Region: Europe and North America
- Frequency bands: 868MHz , 915MHz and 2.4GHz
- Tx out power: 14dBm or 22dBm (subGHz) and 11.5dBm (2.4GHz)

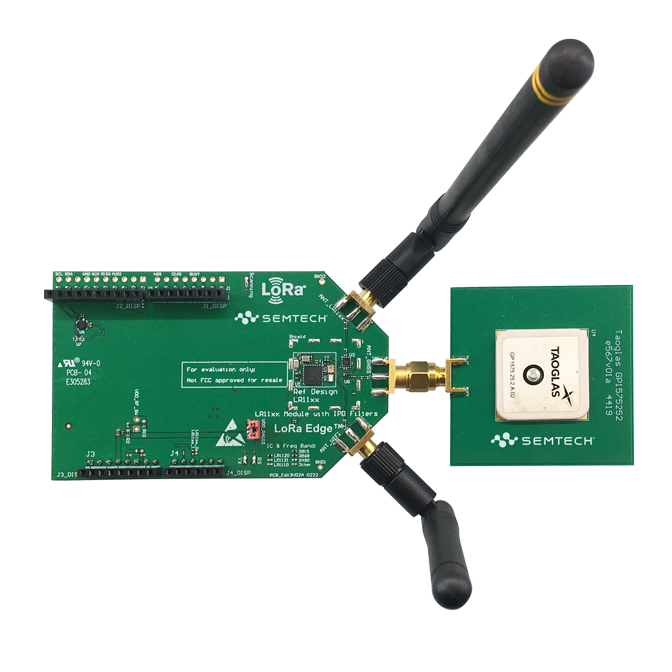

- Each development kit contains:
- LR1120MB1IPDDIS: single RF module with 1x IPD for 868/915MHz and 1x IPD for GNSS and 2.4GHz Wi-Fi band - PCB Nr.: E613V02A
- 1x LoRa antenna for 868MHz (Europe – grey rings) – Linx Tech P/N: ANT-868-CW-HWR-SMA
- 1x LoRa antenna for 915MHz (U.S. – yellow rings) – Linx Tech P/N: ANT-916-CW-HWR-SMA
- 1x GNSS passive patch antenna or equivalent – Taoglas P/N: GP.1575.25.2.A.02
- 1x LoRa/Wi-Fi 2.4GHz antenna – Pulse Electonics P/N: W1010
